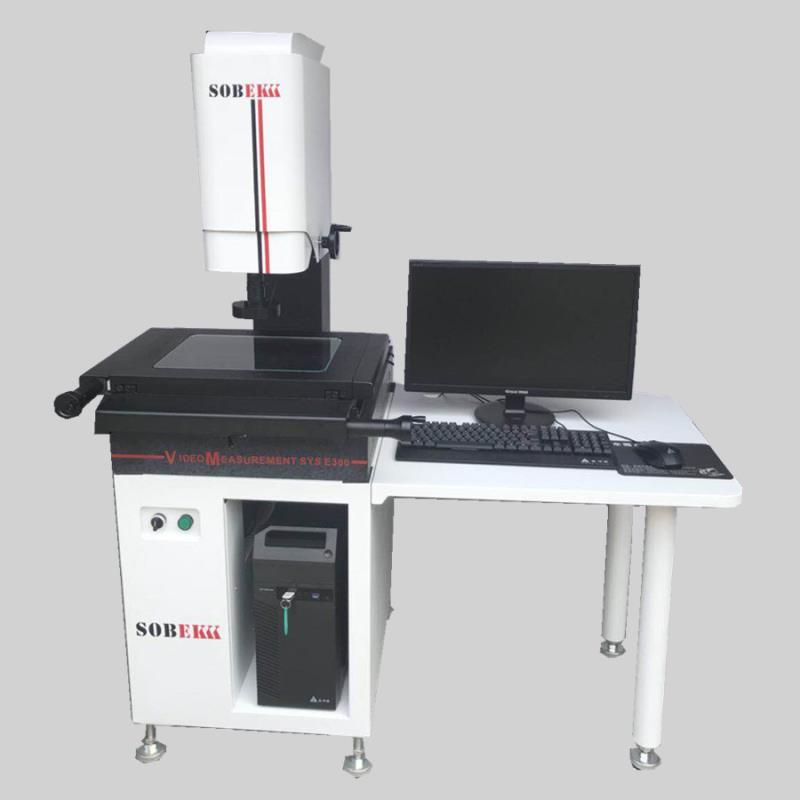

SOBEKK E Series Manual Video Measuring Machine
Product Details:
- Equipment Materials Cast Iron
- Capacity 1.5 Ton/day
- Display Type PC
- Weight 285 Kilograms (kg)
SOBEKK E Series Manual Video Measuring Machine Price And Quantity
- 3300-20000 USD ($)
- 3300.00 - 20000.00 USD ($)
- 1 Set
SOBEKK E Series Manual Video Measuring Machine Product Specifications
- Cast Iron
- 285 Kilograms (kg)
- PC
- 1.5 Ton/day
SOBEKK E Series Manual Video Measuring Machine Trade Information
- Shanghai China
- 1000 Set SET Per Year
- 7-15 Days
- Contact us for information regarding our sample policy
- Wooden Case (fumigation-free)
- All India
- CE,ISO9001
Product Description
Features
- HIWINP level linear guideway and precision cross roller guideway for increased accuracy & working life Integrated granite base and column ensures machine stability.
- Supplied with SBK-E multifunctional 2.5D measuring software, automatic edge detection and vision height measurement function.
- Supplied with removable & dis mountable console support table
- High-definition detent step zoom lens and high-resolution CCD performs high-definition measurement.
- Supports different file formats of data output such as Word, Excel, CAD etc. DXF import for quick inspection.
- S300,S400,S500 the axis is with motor move and auto focusing
Specification
| Model | E200 | E300 | E400 | E500 |
| Measuring range(mm) | 200*100*200 | 300*200*200 | 400*300*200 | 500*400*200 |
| Machine size(mm) | 750*1300*1500 | 750*1300*1500 | 900*1400*1500 | 1100*1125*1650 |
| Weight(kg) | 300 | 300 | 400 | 530 |
| Max. load(kg) | 20 | 25 | 25 | 30 |
| Accuracy of X-Y axis | 3+L/200um | |||
| Accuracy of Z axis | 5+L/200um | |||
| XYZ resolution | 1.0um | |||
| Repeatability(mm) | 0.003 | |||
| Linear encoder | glass linear scale | |||
| Camera type | SBK-HC536 1/3 inches 600 lines industrial color camera | |||
| Liner guide | Z axis: Taiwan HIWIN P grade linear guideway; XY use V type linear guideway | |||
| Optics | 6:5:1 continual zoom step lens | |||
| Magnification | optics zoom ratio: 0.7-4.5X; image zoom ratio: 24-158X | |||
| Software | SBK-E manual 2.5D measure software | |||
| Control system | SBK3000 control box, USB port, adjustable light | |||
| Profile illumination | LED cold lighting,256 level programmable brightness adjustment | |||
| Surface illumination | LED cold lighting with segmented independent control & 256 level programmable brightness adjustment | |||
| Operated mode | handle wheel | |||
| Option device | Renishaw MCP probe, 0.5X, 2X extend lens | |||
